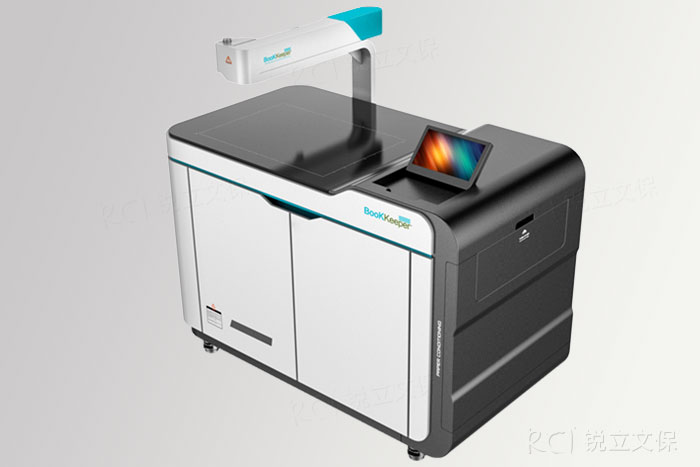

Automatic spraying deacidification machine adopts path spraying method. When paper is placed in set area on the processing panel, spray gun will spray deacidification reagents evenly within the corresponding area in a default spraying path. During the spraying, a vacuum pump under the panel traps the paper, preventing it from being blown away by airflow.

Applicable to regular paper archives, such as archives, official documents, manuscripts, etc. Biggest processing range up to A2 size. Optimal for mass deacidification.

Parameters:

Model No.: RL-HM02

Dimensions: 1380mm(L)X920(W)X1380mm(H)

Weight: 290kg

Power supply: 220V

Rate power: 2.0kW

Air-compressor pressure: 0.8Mpa

Storage tank capacity: 11.5kg

Controlling: Automatic control with LCD touch panel.

Work flow: Manually fed, precise spraying within default path, manually collect.

rocessing format: Maximal processing size is A2: capable of processing sheet no larger than 600mm x 420mm, or a spreading of 4 sheets of A4 paper.

Minimal operator: 1 person

Efficiency: 600 sheets of A4 size/ hour

Demo of Automatic spraying paper deacidification system:
