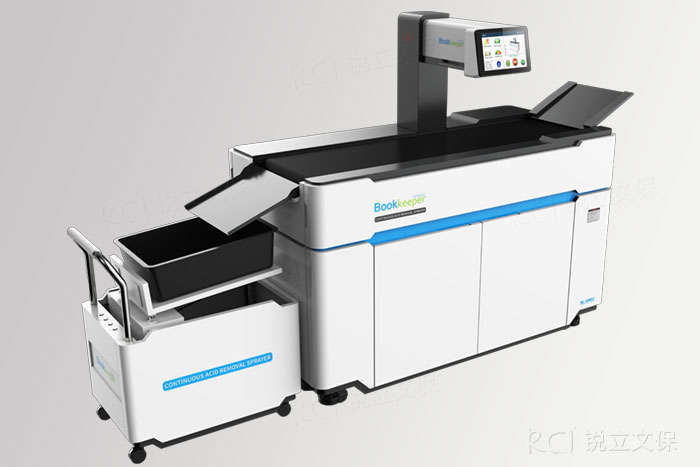

Band conveying deacidification system conveys paper on a rotating plastic band. On the passage,paper are sprayed with deacidification reagents and dried. At the end of passage, paper are dropped into a collecting tray on the ground.Spray process is highly automatic,which keeps precise control over dosages and gains best efficiency.

Applicable to regular paper archives, such as archives, official documents, etc. Biggest processing range up to A3 size. Capable of mass deacidification.

Parameters:

Model No.: RL-HM01

Dimensions: 1600mm(L)X800mm(W)X1400(H)

Weight: 420kg

Power supply: 220V

Rate power: 2.0kW

Air-compressor pressure: 0.8Mpa

Storage tank capacity: 11.5kg

Controlling: Automatic control with LCD touch panel.

Processing format: Maximal processing size is A3(297mm X420mm)

Work flow: Manually fed, band convey, paper detect, precise spraying within default path, automatic collect.

Minimal operator: 1 person

Efficiency: 1800 sheets of A4 size/ hour.
